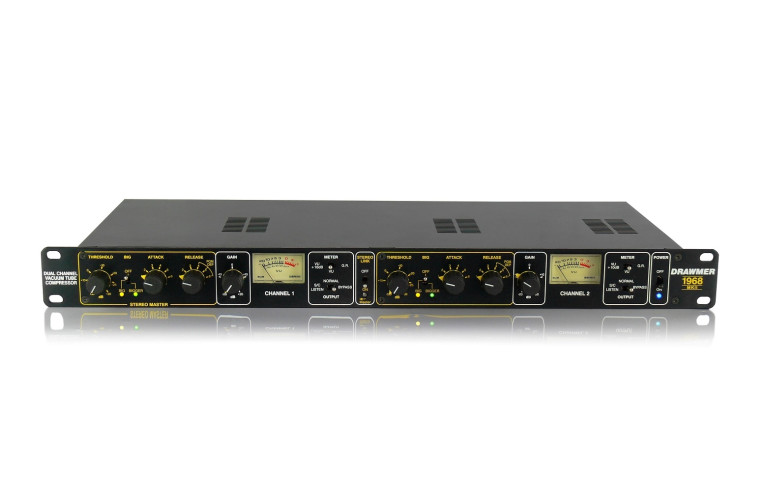

DRAWMER 1968 MkII
Dual Channel Tube Compressor
DRAWMER 1968 MkII
Dual Channel Tube Compressor
Opis
The 1968 MkII is a 1U Tube/FET stereo bus compressor which by design delivers a transparent open sound even during periods of heavy compression. The original 1960 used a tube stage at the front of the compressor, whilst the 1968 MkII utilisies a J-FET (Field Effect Transistor) gain reduction circuit that operates faster than an opto-isolator. The compressor uses a 12AX7 tube makeup gain amplifier where you can add, with the Output Gain control, up to 20 dB of additional gain. The need for a ratio control has been removed as the compressor operates on the soft knee principle where the onset of compression is progressive.
Odlike proizvoda:
- 2 channel tube/FET compressor
- 2 soft-knee compressors with variable threshold, attack, release and output gain
- Dual mono or true stereo link operation
- Side chain access and side chain listen facility
- VU metering of gain reduction and output levels
- Switchable +10dB mode on VU meters
- Balanced +4dB XLR in/outs
